ゴム加硫プレス機
Created with Pixso.

Plate Vulcanizing Machine / Rubber Mat Manufacturing Machine

Plate Vulcanizing Machine / Rubber Mat Manufacturing Machine

ブランド名: Beishun
モデル番号: XLB-800*800
MOQ: 1セット
価格: 交渉可能
支払条件: T/T
供給能力: 30セット/60日
詳細情報
起源の場所:
青島
証明:
ISO/CE
電圧:
220V/380V/400V/440/
コントロール:
自動
加硫の時間:
0-999s
海外でのサービス:
規定
冷却システム:
水冷/空冷
ポンプストローク:
300mm
保証:
3年
積み込み口:
青島、中国
動作電圧:
380V 50HZ 3Phaseまたはカスタマイズされる
プレートサイズ:
500mm×500mm~1500mm×1500mm
プランジャー素材:
冷やした鋳鉄
サイクルタイム:
30~300秒
輸出市場:
グローバル
カスタマイズされたサービス:
サポートのカスタマイズ
製品名:
22Kw
パッケージの詳細:
40GP
ハイライト:

rubber vulcanizing press machine with warranty

,

plate vulcanizing machine for rubber mats

,

industrial rubber mat manufacturing machine

製品説明

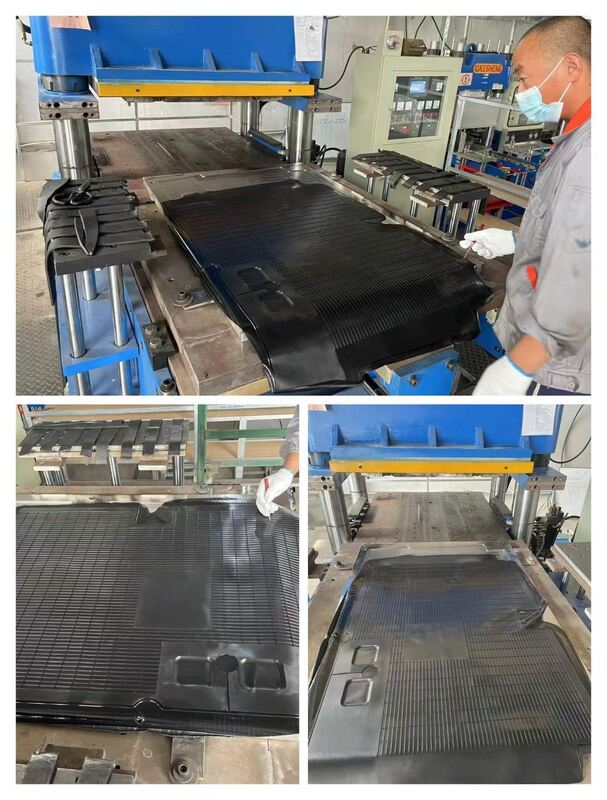

Plate Vulcanizing Machine / Rubber Mat Manufacturing Machine
The Plate Vulcanizing Machine, also known as Rubber Mat Manufacturing Machine, is a core hydraulic equipment in the rubber industry designed for vulcanization molding of rubber mats, rubber sheets, sealing gaskets, and other products under high temperature and pressure conditions.
Working Principle
Vulcanization involves rubber materials undergoing a cross-linking reaction under controlled conditions of temperature (140-180°C), pressure (50-2000 tons), and time (5-30 minutes) to form an elastic, durable three-dimensional network structure.
  • Feed rubber material into the machine
  • Close the mold under hydraulic pressure
  • Heat and maintain pressure for vulcanization
  • Cool and demold to obtain finished rubber mat products
Main Structure
  • Rack: High-strength steel plate welding, including upper/lower beams and columns, designed to withstand high pressure
  • Hot Plates: Made of high-quality steel with electric heating tubes or oil heating channels; temperature uniformity of ±1-2°C
  • Hydraulic System: Provides clamping force with oil pump, motor, cylinder and control valve; stepless pressure adjustment
  • Control System: PLC + intelligent temperature controller with automatic temperature control, timing, pressure maintenance and deflation functions
Common Types & Parameters
  • Column Type: Small and medium-sized (50-500 tons), suitable for small rubber mats and gaskets
  • Frame Type: Large-scale (1000-2000 tons), designed for large rubber floor mats, car mats, and similar products
Example Parameters (XLB Series):
Specification Range
Hot Plate Size 500×500mm ~ 1400×1500mm
Clamping Force 1000KN (100 tons) ~ 20000KN (2000 tons)
Heating Method Electric heating (standard) / oil heating / steam heating
Number of Layers 1-6 layers (multi-layer for high efficiency)
Applications
Rubber Products:
  • Car floor mats
  • Anti-slip mats
  • Industrial rubber sheets
  • Sealing gaskets
  • Shock-absorbing pads
Other Materials: Thermosetting plastics, foam materials, resin products
Key Advantages
  • High Precision: Precise control of temperature, pressure and time ensures consistent product quality
  • High Efficiency: Multi-layer design and automatic control improve production capacity
  • Durability: Stress-relieved frame ensures long-term stable operation
Price Range (FOB Qingdao, China)
Small (100-300 tons): USD 5,000 - 15,000
Medium (500-1000 tons): USD 20,000 - 50,000
Large (1500-2000 tons): USD 125,000 - 150,000
Plate Vulcanizing Machine / Rubber Mat Manufacturing Machine 0 Plate Vulcanizing Machine / Rubber Mat Manufacturing Machine 1 Plate Vulcanizing Machine / Rubber Mat Manufacturing Machine 2
