Small-sized φ30mm Screw Cold Feed Rubber Extruder for Precision Rubber Processing

Small-sized φ30mm Screw Cold Feed Rubber Extruder for Precision Rubber Processing

ブランド名: Beishun
モデル番号: XJ-30
MOQ: 1セット
価格: 交渉可能
供給能力: 30セット/月
詳細情報
起源の場所:
青島
証明:
ISO、CE
日光:
600mm
制御モード:
自動
自動:
自動
プルーンジャー直径:
300MM
材料:
アルミニウム合金
使用:
ゴムオイルシールリングとゴムガスケット
パッキング:
FCL/LCL
シリンダー材質:
鋳鋼
ポンプストローク:
400mm
加熱方法:
電気
プレートサイズ:
カスタマイズ可能(例:1000mm x 1000mm)
プランジャー素材:
冷やした鋳鉄
タイプ:
コラム、PLC制御
圧力モード:
油圧シリンダー
働く層:
1,2,4
冷却方法:
水冷
駆動エンジンのパワー:
25kW/6レベル
モーター:
25
生産モード:
サポートのカスタマイズ
ゴム 加工:
ゴムシールストライプ/ゴムハウス
表面硬さ:
950〜1000HV
マシンタイプ:
押出機
アプリケーション:
ゴム異形押出
出力容量:
30kg/時
Hsコード:
84778000
電源:
電気
アプリケーション産業:
製造工場
プロセス材料:
ゴム顆粒製造機
パッケージの詳細:
木箱
ハイライト:

φ30mm Screw Rubber Extruder

,

Small-sized Cold Feed Extruder

,

Cold Feed Rubber Extruder

製品説明

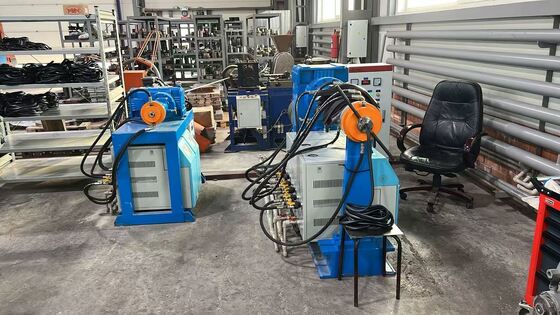

Small-Sized φ30mm Screw Cold Feed Rubber Extruder
A compact rubber extruder featuring a 30mm screw diameter with cold feed technology, designed for precision processing in rubber product manufacturing.
Equipment Overview
This specialized extruder combines small-scale design with advanced cold feed technology, making it ideal for research, development, and small-batch production applications.
Key Features & Benefits
  • Compact Design: Small footprint with minimal space requirements
  • Energy Efficient: Low power consumption compared to larger models
  • Flexible Operation: Easy material switching and quick setup changes
  • Cost Effective: Lower initial investment and operating costs
  • Precision Control: Accurate temperature and speed regulation
Technical Specifications
Screw Diameter φ30mm
Feed Method Cold Feed Technology
Length-to-Diameter Ratio 12:1 to 18:1 (configurable)
Temperature Control Precise multi-zone heating and cooling
Control System PLC or touchscreen interface
Primary Applications
  • Miniature sealing strips and O-rings
  • Wire and cable insulation layers
  • Medical catheters and tubing
  • Small automotive components
  • Research and development projects
  • Model making and specialty crafts
Working Principle
The extruder processes unheated rubber compound at room temperature through intense mechanical shearing, compression, and internal heating generated by screw rotation. This eliminates the need for separate preheating processes while ensuring consistent product quality.
Standard Components
  • Drive system with motor and gearbox
  • Extrusion system with barrel and specialized screw
  • Interchangeable die heads and nozzles
  • Multi-zone temperature control system
  • Advanced PLC control interface
  • Feeding device for continuous operation
Selection Considerations
When choosing this equipment, consider screw L/D ratio, screw structure type, heating/cooling capacity, control precision, brand reputation, and compatibility with vulcanization equipment for complete production line integration.
Industry Advantages
This small cold-feed rubber extruder offers significant benefits over traditional hot-feed methods, including simplified production processes, improved product consistency, and enhanced suitability for temperature-sensitive materials. It represents an essential tool for modern precision rubber manufacturing and research applications.
